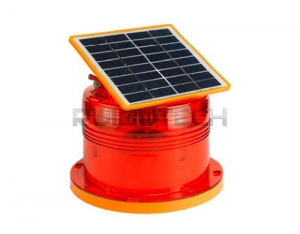

ZH-878-3-L solar low intensity of flash obstacle light
ZH-878-3/L solar low intensity of flash obstacle light red Hengguang aviation obstacle lights, using solar power, no power transmission cables, especially suitable for the cable laying difficulties, lack of power and place, the lightning protection building facilities required. Applicable to the height of 45 meters below the building installation. Solar energy lamp had to use in sunny places, such as above the other object blocking the sunlight place is not suitable for installation.
Product introduction:
ZH-878-3/L solar low intensity of flash obstacle light red Hengguang aviation obstacle lights, using solar power, no power transmission cables, especially suitable for the cable laying difficulties, lack of power and place, the lightning protection building facilities required. Applicable to the height of 45 meters below the building installation. Solar energy lamp had to use in sunny places, such as above the other object blocking the sunlight place is not suitable for installation.
Product description:
The solar battery board adopts the international advanced, low intensity, high efficiency battery plate, with the solar energy battery for deep cycle for power. Panels and low iron tempered glass sealing, solar panel angle adjustable (without any tools, the range of ± 20 °).
The battery charge and discharge using the power of advanced management system, in the battery undervoltage, overvoltage, floating charge, temperature of various aspects of the comprehensive protection, greatly improving the service life of the battery.
The control circuit adopts the flash controller with micro power consumption, reduce energy consumption control circuit itself, greatly improves the reliability of the products.
The LED light source, using imported international advanced long life, low power consumption, high efficiency of the chip package (longer than 100000 hours).
The shell is made of high quality engineering plastics (ABS+PC) production.
The base of the lamp with magnetic switch completely isolated, to ensure that the products of sealing power loss and storage period.
● lampshade adopts PC material, has excellent impact resistance (IZOD notched impact strength: 90), thermal stability (high temperature of 130 ℃),
Good light transmission (transmission rate up to 90%), anti UV, anti aging. Product rainy days of continuous work time more than 15 days.
The General Administration of civil aviation of China license No.: LF09R117
The General Administration of civil aviation of China designated inspection units (the State Quality Supervision Inspection Center) test certificate no.:
The product model:
● ZH-878-3/L: solar low intensity of flash obstacle with single lamp, light switch, the controller without the need to open the base, magnetic switch can automatically control the flash, each lamp are used alone.
● ZH-878-3/LC: solar low intensity Hengguang barrier single lamp, this model applies only to the particular sunny area.
