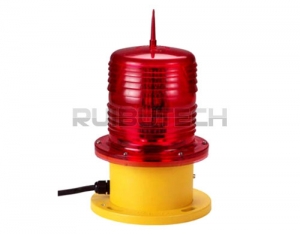

The intensity of B ZH-800AM/B in aviation obstacle lamp
Intensity of B type ZH-800AM/B for red light aviation obstacle lights, more than 45 meters and less than 105 meters used alone or combined with low light intensity to use in building. Used together when the building height greater than 105 meters can be matched with the intensity of A type or high intensity, common to aviation obstacle warning.
Product introduction:
Intensity of B type ZH-800AM/B for red light aviation obstacle lights, more than 45 meters and less than 105 meters used alone or combined with low light intensity to use in building. Used together when the building height greater than 105 meters can be matched with the intensity of A type or high intensity, common to aviation obstacle warning.
Product description:
● lampshade adopts PC material, has excellent impact resistance (IZOD notched impact strength: 90), thermal stability (high temperature of 130 ℃), good light transmission (transmission rate up to 90%), UV resistance, aging resistance, flammability rating UL94V0.
The lamp is made of casting aluminum alloy, surface of the baking process, has the characteristics of light weight, fast heat conduction, waterproof, anti earthquake, corrosion resistance.
The LED light source, using imported international advanced long life, low power consumption, high efficiency of the chip package (life routine 100000 hour).
● lamp power line with anti surge device (anti lightning In 7.5KA/5, Imax 15KA), can be applied to the bad climate and environment.
Model specification:
The intensity of ZH-800AM/BZ: B main lamp, with a light operated switch, can drive the vice light multiple units of the same frequency flash.
● ZH-800AM/BF: light intensity B auxiliary light, no light control switch, need the main lamp or controller driver uses.
