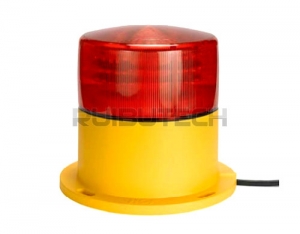

Intensity of B aviation obstacle ZH-800AM/C silver standard lamp
Intensity of B type ZH-800AM/C silver standard for red light aviation obstacle lights, when buildings higher than 45 meters and 105 meters used alone or combined with low light intensity used together. Used together when the building height greater than 105 meters can be matched with the intensity of A type or high intensity, common to aviation obstacle warning.
Product introduction:
Intensity of B type ZH-800AM/C silver standard for red light aviation obstacle lights, when buildings higher than 45 meters and 105 meters used alone or combined with low light intensity used together. Used together when the building height greater than 105 meters can be matched with the intensity of A type or high intensity, common to aviation obstacle warning.
Product description:
● lampshade adopts PC material, has excellent impact resistance (IZOD notched impact strength: 90), thermal stability (high temperature of 130 ℃), good light transmission (transmission rate up to 90%), UV resistance, aging resistance, flammability rating UL94V0.
The lamp is made of casting aluminum alloy, surface of the baking process, has the characteristics of light weight, fast heat conduction, waterproof, anti earthquake, corrosion resistance.
The LED light source, using imported international advanced long life, low power consumption, high efficiency of the chip package (life routine 100000 hour).
● lamp power line with anti surge device (anti lightning In 7.5KA/5, Imax 15KA), can be applied to the bad climate and environment.
The General Administration of civil aviation of China license No.: LF09R116
The General Administration of civil aviation of China designated inspection units (the State Quality Supervision Inspection Center) test certificate no.:
Model specification:
● ZH-800AM/CZ: silver standard intensity in the B main light, with light operated switch, can drive the vice light multiple units of the same frequency flash.
● ZH-800AM/CF: silver standard intensity in the B auxiliary light, no light control switch, need the main lamp or controller driver uses.
ZH-800AM/C J: the silver standard intensity of B type with monitoring the auxiliary light, no light control switch, need controller driver uses, and can control the working state display lamp.
● ZH-800AM/C: automatic conversion type silver standard intensity in the B main and auxiliary lamp, without distinction of main and auxiliary lamps, each lamp has the main lamp also has the side lamp function.
● ZH-800AM/CP: silver standard intensity of B type GPS type, with a light operated switch, GPS control module, GPS with frequency.
Description: the lamp designation suffix T is the model with lightning protection cover, anti lightning In 7.5KA/5, Imax 15KA.
