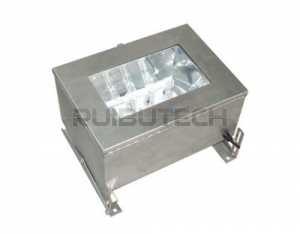

ZH-800AH/K high intensity B obstacle lamp
ZH-800AH/K high intensity of B type single direction for white flash aviation obstacle lights, mainly used in electric steel tower more than 150 metres across, hierarchical order flashing, to display the tower height and the suspension wires on the suspension height, the aviation obstacle warning.
Product introduction:
ZH-800AH/K high intensity of B type single direction for white flash aviation obstacle lights, mainly used in electric steel tower more than 150 metres across, hierarchical order flashing, to display the tower height and the suspension wires on the suspension height, the aviation obstacle warning.
Product description:
The shell is made of SUS304 stainless steel, fully sealed structure, with the advantages of light weight, waterproof, anti earthquake, corrosion resistance.
External fully tempered glass with the built-in efficient reflective device, the effective use of light rate reached 80%.
● light xenon lamp, using imported cold light source, high brightness (light efficiency up to 100Lm/W), low power consumption, the number of flashes life up to 100000000 class features.
● lamp power line with anti surge device (anti lightning In 7.5KA/5, Imax15KA), can be applied to the bad climate and environment.
● high intensity aviation obstruction lights in accordance with the environmental brightness day and night all-weather twenty-four hours of uninterrupted work; and can automatically transform intensity. If you need more lights flash sync, combination, also can use the main lamp with auxiliary lamp or controller to control the way to achieve the same frequency flash.
The General Administration of civil aviation of China license No.: LF09R114
The General Administration of civil aviation of China designated inspection units (the State Quality Supervision Inspection Center) test certificate no.:
The product model:
● ZH-800AH/KZ: high intensity B lamp, with a light operated switch, can drive the vice light multiple units of the same frequency flash.
● ZH-800AH/KF: high intensity B type auxiliary light, no light control switch, need the main lamp or controller driver uses.
ZH-800AH/K J: high intensity B type belt monitoring side light, no light control switch, need controller driver uses, and the controller can work state display lamp.
