ZH-9602/F airport weather vane
ZH-9602/ F airport vane can indicate the final approach and takeoff of the wind direction, wind speed and to make general instructions, according to ICAO regulations each airport must be provided with at least one vane. Its installation position selection to ensure the uninterrupted flow of objects or the rotor near blows, must support at least 200 meters outside the plane can clearly identify.
Product introduction:
ZH-9602/ F airport vane can indicate the final approach and takeoff of the wind direction, wind speed and to make general instructions, according to ICAO regulations each airport must be provided with at least one vane. Its installation position selection to ensure the uninterrupted flow of objects or the rotor near blows, must support at least 200 meters outside the plane can clearly identify.
Product description:

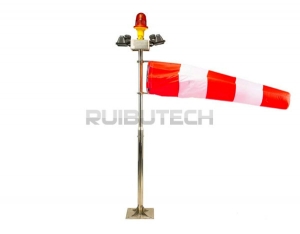

● ZH-9602/F airport lighting type vane to vane, is a marker of various airport observed wind and wind direction, can be in the daytime and nighttime use.
The installation of an LED light red obstacle lights on the top, obstacle tips for pilots in the night.
● the top sides installed 2 150W tungsten halogen lamps (lamp or 4 LED-10W) to provide lighting for the air bag at night.
The installation of a lightweight stainless steel air bag frame and a 360 degree horizontal bearing rotating mechanism in the upper pole.
The installation of a wind bag in the air bag frame (nylon, rainproof wind bag for corrosion resistance, high temperature resistance of anti UV made, good performance, long service life. Color is red (Orange) and white, is divided into five sections, starting Duan Weihong (Orange) color) According to the benchmark
The total height of different wind bag size is divided into three types:
1# bore diameter is 300mm, the small end diameter is 150mm, length is 1.2m
2# bore diameter is 600mm, the small end diameter is 300mm, length is 2.4m
3# bore diameter is 900mm, the small end diameter is 450mm, length is 3.6m
Selection of air bag: 3.5 meters below the 1# air bag; 4 meters to 6 meters
2# is generally used in the air bag, height more than 6 meters of the vane can be used 3# wind bag.
● pole bracket and foundation part: are all made of SUS304 stainless steel. The total mark 1.5m, 2.5m, high 3.5m, 4m, 5m, 6m, 7m or according to need; when the total more than 9 meters high, in order to increase the stability can be equipped with cable. Type of matching reference product list.
● the product power supply using AC220V/50HZ. (according to the need to also can use 6.6A power supply mode).
Design specification:
●The products meet the USA Federal Aviation Administration (FAA) advisory circular AC150/5345-27C, L-806 and the International Civil Aviation Organization (ICAO) Airport Design Manual fourth part of the code.
●The designed maximum wind speed is 260km/h, but the speed is too high or UV intensity high area will shorten the service life of air bag. The bottom of the circuit, 2.5mm2 wire terminal.}
Installation guide:
● wind bag in the air bag frame, the magic stick firmly, and is firmly connected with the rotating mechanism to check the wind bag frame, shall ensure that the bag frame two fixed jaw firmly, bolt. (wind bag should be replaced once a year.)
● the vane products in accordance with the installation instructions the connected, check the rotation wind bag, if you have stuck phenomenon, should be added to the rotary bearing lubricant (oil).
After the wire products in accordance with the installation instructions for connecting line, and check the lamp work is normal.
● confirmed to the vane through the 4 M16 screws on the concrete foundation. Then check the verticality of the mounting bracket, if it is found that the tilt adjustment shall be made.
● height greater than 6 meters of the wind vane mounted chassis with hinge, to facilitate the installation and maintenance. When in installation can be fixed hinge chassis and a vertical main rod can save installation time. (vane general need to once every six months.)
