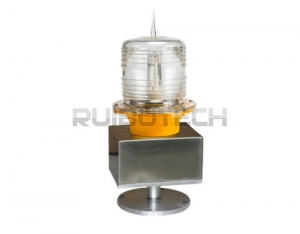

ZH-9602-B heliport access lamp
ZH-9602/B heliport near light lamp flashing white light order, mainly used as a landing at the airport into nearly guide, can give the pilot of the plane into the direction indicator provides nearly. The lamp is installed in the machine Ping boundary lamp, the airport can approach direction, unilateral installation is also reversible, at least 5 lamps as a group, flash mode from outside to inside flicker.
Product introduction:
ZH-9602/B heliport near light lamp flashing white light order, mainly used as a landing at the airport into nearly guide, can give the pilot of the plane into the direction indicator provides nearly. The lamp is installed in the machine Ping boundary lamp, the airport can approach direction, unilateral installation is also reversible, at least 5 lamps as a group, flash mode from outside to inside flicker.
Product description:
● the lampshade adopts PC material, has excellent impact resistance (IZOD notched impact strength: 90), good thermal stability (high temperature of 130 ℃), good light transmission (transmission rate up to 90%), UV resistance, aging resistance, flammability rating UL94V0;
The lamp holder is made of aluminum alloy and SUS304 stainless steel, surface of the spray process, has the characteristics of light weight, waterproof, anti earthquake, corrosion resistance. The lamp is arranged at the bottom of the easy folding device.
The light source adopts imported cold light xenon lamp, high brightness (light efficiency up to 100Lm/W),
Low power consumption, the number of flashes of life 100000000 times, is widely used in the aviation industry;
● lamp power line with anti surge device (anti lightning In 7.5KA/5,
Imax 15KA), suitable for harsh working environment.
The General Administration of civil aviation of China license number: 06404319
The General Administration of civil aviation of China designated inspection units () test certificate no.:
The product model:
ZH-9602/BZ: approach lighting lamp, with a control circuit, can control the side lamp.
ZH-9602/BF: approach light side light, not to work alone, need the main lamp control to achieve work.
