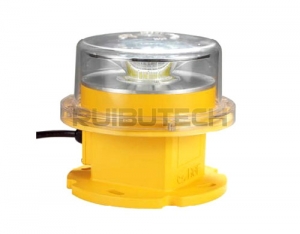

Light intensity B disorder ZH-800AM/R gold standard lamp
Intensity of B type ZH-800AM/R gold standard for red light aviation obstacle lights, when buildings higher than 45 meters and 105 meters used alone or combined with low light intensity used together. Used together when the building height greater than 105 meters can be matched with the intensity of A type or high intensity, common to aviation obstacle warning.
Product introduction:
Intensity of B type ZH-800AM/R gold standard for red light aviation obstacle lights, when buildings higher than 45 meters and 105 meters used alone or combined with low light intensity used together. Used together when the building height greater than 105 meters can be matched with the intensity of A type or high intensity, common to aviation obstacle warning.
Product description:
● lampshade adopts PC material, has excellent impact resistance (IZOD notched impact strength: 90), thermal stability (high temperature of 130 ℃), good light transmission (transmission rate up to 90%), UV resistance, aging resistance, flammability rating UL94V0.
The lamp is made of casting aluminum alloy, the department uses the baking varnish craft, has the characteristics of light weight, waterproof, anti earthquake fast heat conduction, corrosion resistance.
The LED light source, using imported international advanced long life, low power consumption, high efficiency of the chip package (longer than 100000 hours).
● lamp power line with anti surge device (anti lightning In 7.5KA/5, Imax 15KA), can be applied to the bad climate and environment.
The General Administration of civil aviation of China license No.: LF09R116
The General Administration of civil aviation of China designated inspection units (the State Quality Supervision Inspection Center) test certificate No.: W09121000403
● international certification: ROHS the European environmental certification (certificate number: 1007024); CE (LV D safety certification, certificate number: 1007016; EMC electromagnetic compatibility,
Certificate No.: 1007014); FCC USA safety certification (certificate number: 1007015).
The product model:
ZH-800AM/RZ: the gold standard intensity in the B main light, with light operated switch, can drive the vice light multiple units of the same frequency flash.
ZH-800AM/RF: the gold standard in the intensity of B type side light, no light control switch, need the main lamp or controller driver uses.
ZH-800AM/R J: the gold standard in the intensity of B type with monitoring the auxiliary light, no light control switch, need controller driver uses, and the controller can work state display lamp.
ZH-800AM/R: the gold standard in the intensity of B type main and auxiliary lamp automatic conversion type, without distinction of main and auxiliary lamps, each lamp has the main lamp also has the side lamp function.
● ZH-800AM/RP: silver standard intensity of B type GPS type, with a light operated switch, GPS control module, GPS with frequency.
Description: the lamp designation suffix T is the model with lightning protection cover, anti lightning In 7.5KA/5, Imax 15KA.
