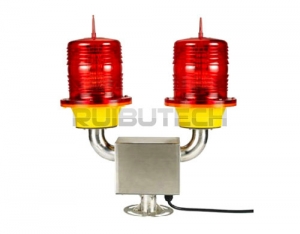

ZH-800AM/S double aviation obstacle light intensity
Intensity of B type ZH-800AM/S double barrier for red light flash aviation obstacle lights, when buildings higher than 45 meters and 105 meters used alone or combined with low light intensity used together. Used together when the building height greater than 105 meters can be matched with the intensity of A type or high intensity, common to aviation obstacle warning.
Product introduction:
Intensity of B type ZH-800AM/S double barrier for red light flash aviation obstacle lights, when buildings higher than 45 meters and 105 meters used alone or combined with low light intensity used together. Used together when the building height greater than 105 meters can be matched with the intensity of A type or high intensity, common to aviation obstacle warning.
Product description:
● lampshade adopts PC material, has excellent impact resistance (IZOD notched impact strength: 90), thermal stability (high temperature of 130 ℃), good light transmission (transmission rate up to 90%), anti UV, anti aging.
● lamp adopts SUS304 stainless steel materials, the two obstacle lights integrated installation as a whole.
● obstacle lamp holder is made of casting aluminum alloy, surface of the spray process, has the characteristics of light weight, waterproof, anti earthquake, corrosion resistance.
The LED light source, using imported international advanced long-life, LED cold light source with low power consumption, high efficiency (longer than 100000 hours).
● lamp power line with anti surge device (anti lightning In7.5KA/5 Imax15KA), can be applied to the bad climate and environment.
The General Administration of civil aviation of China license number: 070404509
The General Administration of civil aviation of China designated inspection units (the State Quality Supervision Inspection Center) test certificate no.:
The product model:
ZH-800AM/SZ: the main light intensity of B type duplex disorder, with light operated switch, can drive the vice light multiple units of the same frequency flash.
● ZH-800AM/SF: Vice light intensity of B double barriers, no light control switch, need the main lamp or controller driver uses.
● ZH-800AM/S: single lamp light intensity of B type duplex disorder, with light operated switch, can work alone but not with other lamps connected flash synchronization.
